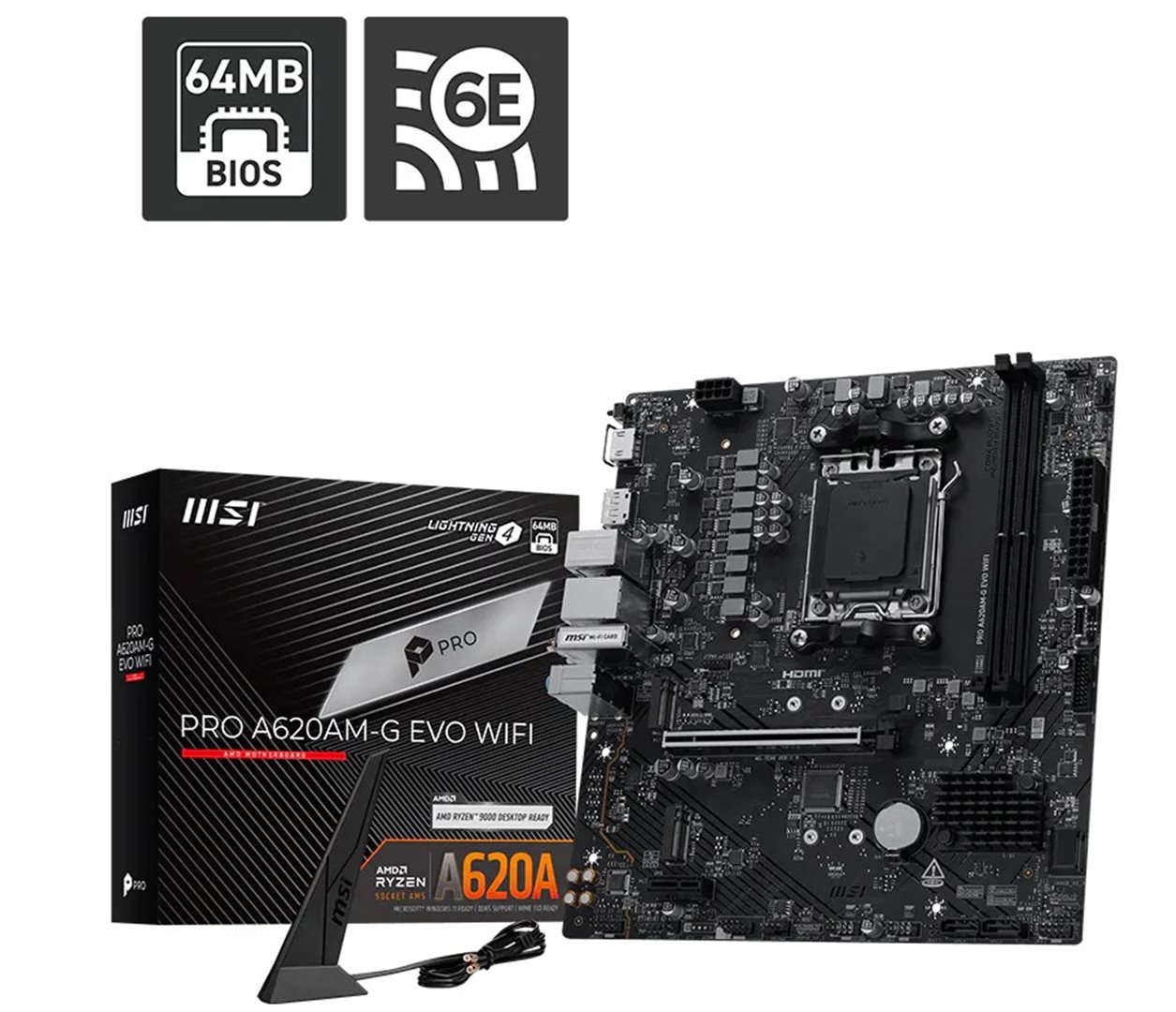

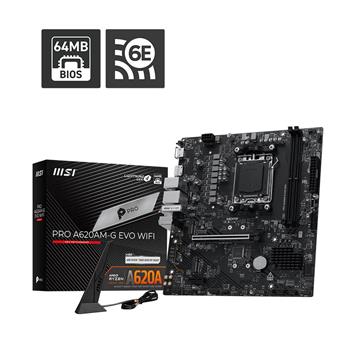

MSI PRE A620AM-G EVO WIFI

MSI PRE A620AM-G EVO WIFI

Chipset:  AMD A620A
Rozmerový formát: mATX 226mmx243.84mm
Podpora pre procesory: AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Pätica procesora: AM5

Pamäť:

• 2x DDR5 UDIMM, Maximum Memory Capacity 128GB
• Memory Support DDR5 7200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Max. overclocking:
• 1DPC 1R Max speed up to 7200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed ??and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

Grafické porty:

1x HDMI

• Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Zvuková karta:

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8125D 2.5G LAN
WLAN + Bluetooth: Wi-Fi 6E

• The Wireless module je preinštalovaný v M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) až 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**, FIPS, FISMA

Rozširujúce sloty:

• 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID radič: RAID 0, RAID 1, RAID 10

Úložný priestor:

2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

M2_2 slot

• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/8700/8600/8400/7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/8300 Series processors)

USB:
Zadné USB

• 2x USB 2.0
• 4x USB 5Gbps Type A

Predné USB

• 4x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 5Gbps Type C

Interné porty:

Napájanie

• 1× Power Connector (ATX_PWR)
• 1× Power Connector (CPU_PWR)
• 1× CPU Fan
• 2× System Fan

USB

• 4× USB 2.0 ports
• 2× USB 5Gbps Type-A ports
• 1× USB 5Gbps Type-C port

Ostatné

• 2× Front Panel (JFP)
• 1× Chassis Intrusion (JCI)
• 1× Front Audio (JAUD)
• 1× COM Port (JCOM)
• 3× Addressable V2 RGB LED konektory (JARGB_V2)
• 1× RGB LED connector (JRGB)
• 1× TPM pin header (TPM 2.0)

Porty na zadnom paneli:

• Clear CMOS Button
• HDMI
• DisplayPort
• USB 5Gbps Type-A
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• USB 2.0

OS: Windows 11 64-bit, Windows 10 64-bit
